Hologram Box: 3D Holographic Display for Events, Exhibitions & Retail

Make your product float in mid-air. Our hologram box is a freestanding holographic display that layers 3D content around a real physical product, no glasses, no headset, no dark room. Available for event rental or permanent installation anywhere in the GCC, with the content and integration handled by us.

Request a quote

What is a Hologram Box?

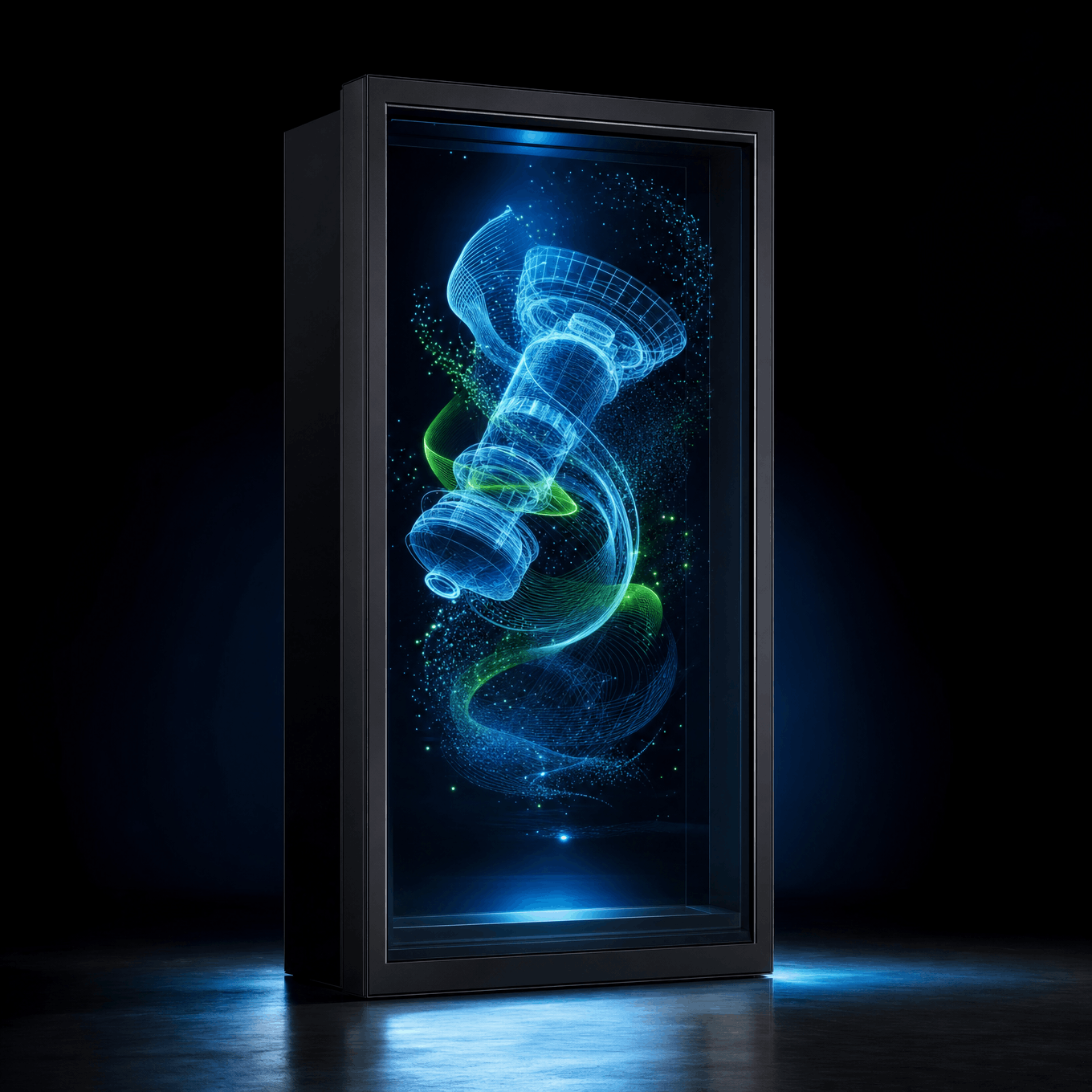

 A freestanding holographic display that makes content appear to float around a real object.

A hologram box, also called a holobox, a holographic display box or a hologram cube — is a freestanding cabinet with a transparent screen in its front face. Content plays on that screen while the space behind it stays visible, so digital visuals appear to hover in mid-air around whatever you place inside. No glasses, no headset, no app.

The effect works because of one property of the panel: black pixels render as transparent. Anything black in your content simply disappears and becomes clear glass, so only the lit elements are visible. Those elements have nothing visibly holding them up, which is what your eye reads as floating. Place a real watch, phone, bottle or engine part inside, light it, and the graphics wrap around the actual object.

Is it a real hologram? The honest answer.

No, and neither is anything else sold under that name. A true hologram in the physics sense records light interference on a laser-exposed medium, and that technology is still confined to laboratories and the security foil on your passport. Every commercial "hologram" the Tupac performance, the LED fans, the pyramid displays, this box, is an optical effect rather than holographic physics.

We say so plainly because the effect does not need the overclaim. What a hologram box actually delivers is a bright, glasses-free 3D illusion that holds up in normal room lighting, from a wide viewing angle, around a real product, all day, reliably. That is a genuinely striking thing to stand in front of, and it is what people photograph. Suppliers who insist it is "true holography" tend to be the ones whose demo disappoints.

Key Features

Glasses-Free 3D Effect

A floating holographic illusion visible to the naked eye, from a wide arc, by several people at once.

Works in Normal Room Light

No blackout, no dark booth. Designed for exhibition stands, lobbies and retail floors as they actually are.

Real Product Inside

Place a physical item in the cabinet and layer digital content around it, so the real and the digital share one frame.

High-Resolution Transparent Panel

A bright see-through display where black renders as clear glass, keeping the floating effect sharp.

Tap-to-Switch Content Control

Change scenes and manage playlists from a simple tablet interface. No technical training, no operator required.

Content Production Included

We build the 3D models, animation and holographic content, not just supply the hardware.

Remote Content Updates

Push new content over the network without sending a technician, which matters for permanent and multi-site installs.

Event-Day Integration

We handle delivery, build, content loading, calibration and a technician on site for the duration.

Scalable to Multi-Unit Walls

Combine units for larger installations or run synchronised content across several boxes.

Where a Holographic Display Works Best

Wherever a product or an idea needs to stop someone walking past:

Exhibitions & Trade Shows

A premium, futuristic centrepiece that pulls visitors off the aisle and onto the stand.

Product Launches & Brand Activations

Reveal a product in 3D for a moment people film and post.

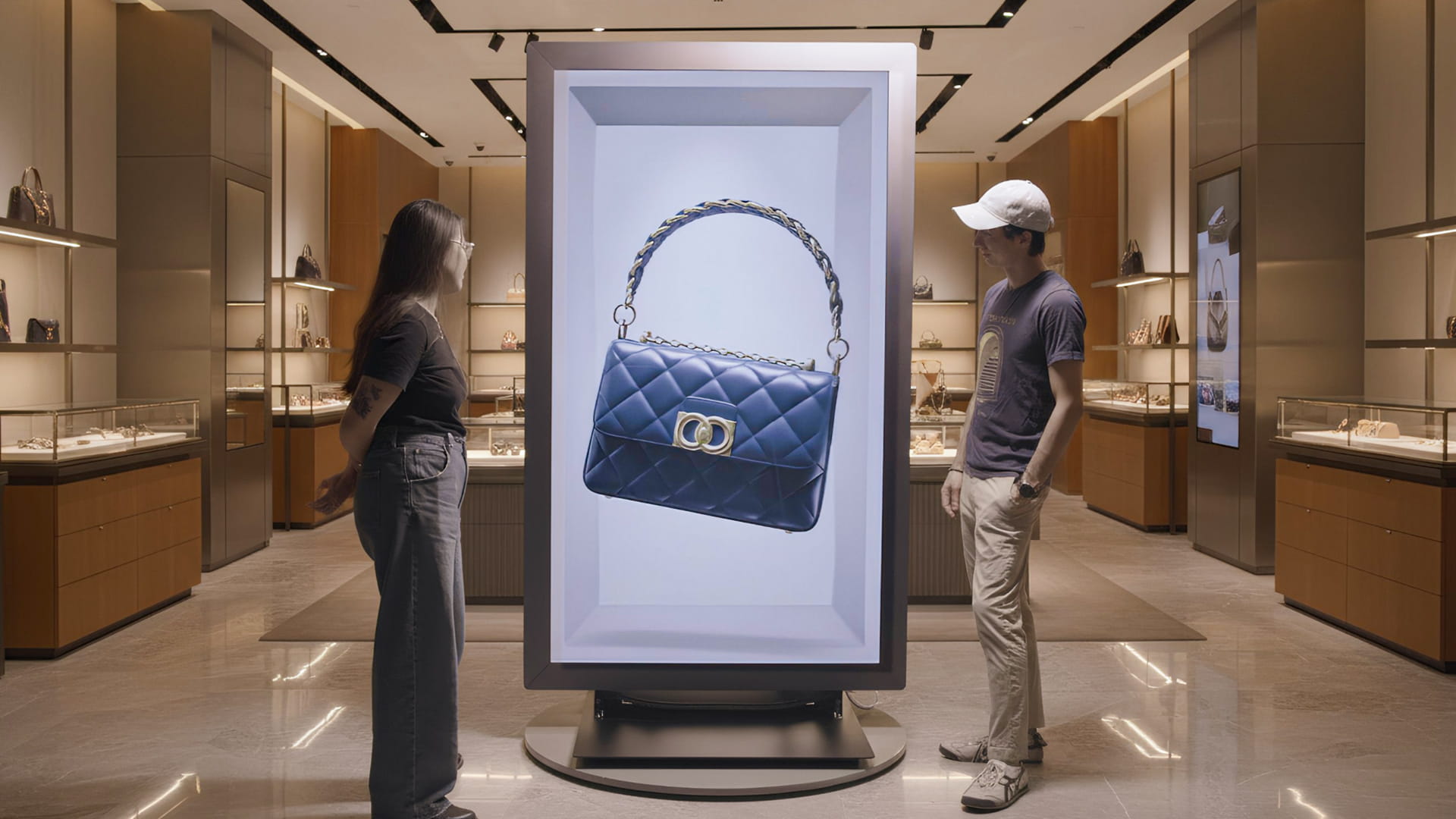

Retail & Flagship Stores

Showcase a hero product as a floating 3D display at the point of decision.

Corporate Events & Storytelling

Present a company narrative, a capability or a concept as something an audience watches rather than reads.

Experience Centres & Showrooms

A permanent holographic display that anchors the visitor journey and carries the story for every delegation.

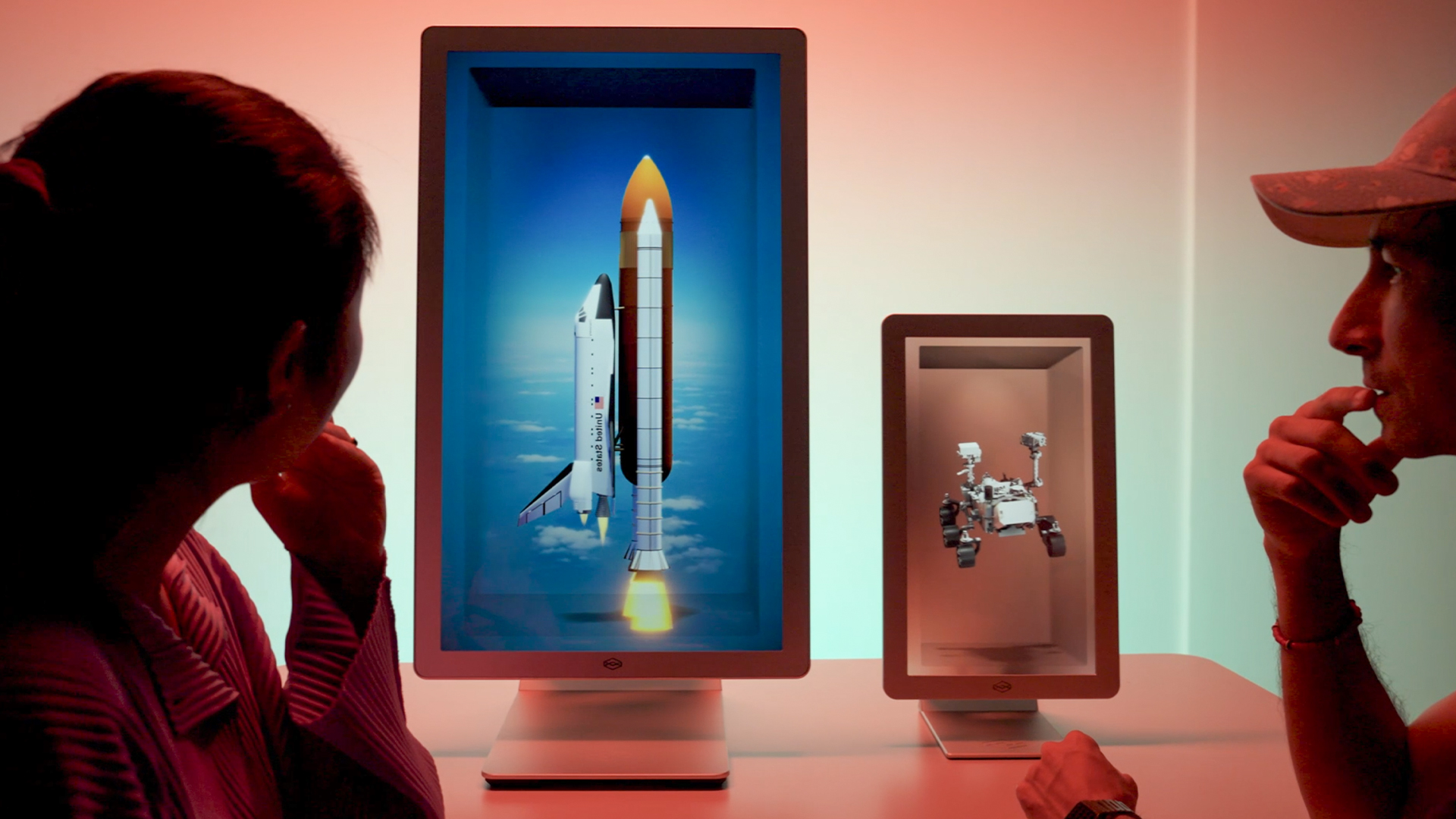

Science Centres & Museums

Bring artefacts, specimens and processes to life in 3D without hiding the real object.

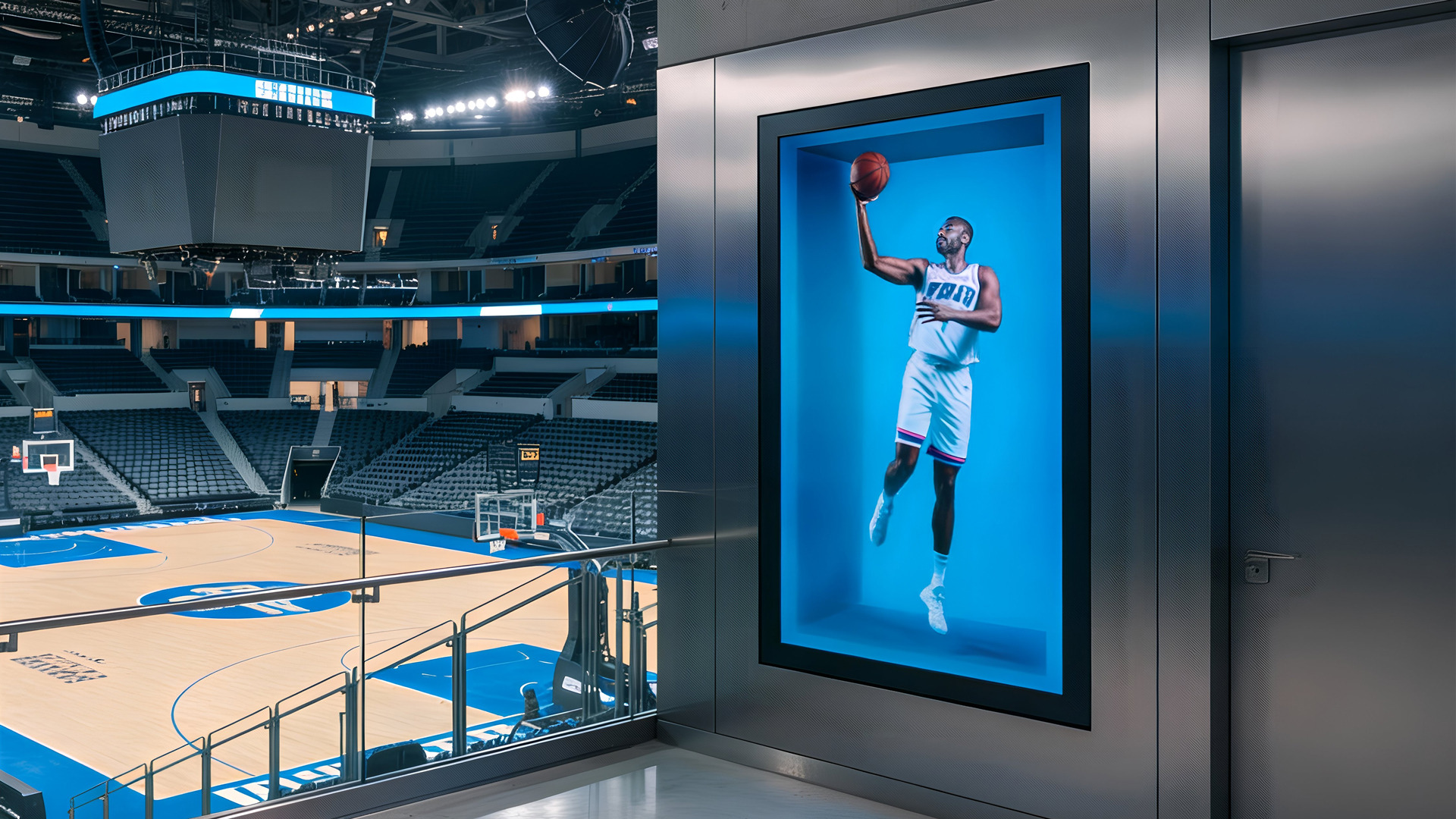

Corporate Lobbies & Receptions

Greet visitors with a high-tech brand statement, or use it as a holographic concierge.

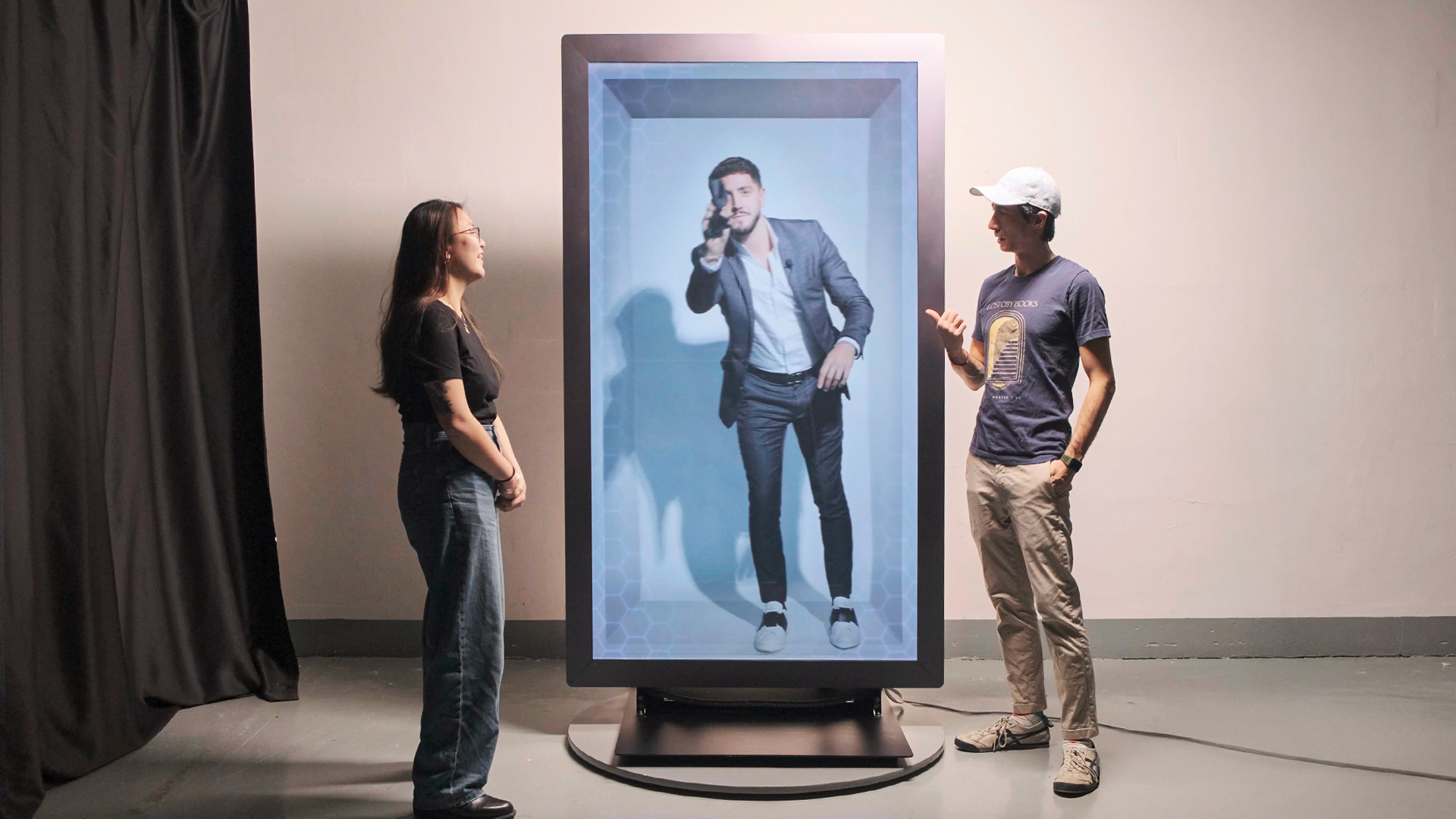

Live Remote Presenters

Put a speaker, spokesperson or specialist on your stand at life size without flying them in.

Hologram Box Technical Specifications

Engineered for a sharp 3D effect and reliable all-day operation in real venue conditions.
SpecificationDetail
System typeFreestanding holographic display cabinet, a transparent panel over a lit enclosure
Display typeTransparent display panel [CONFIRM: LCD or OLED]
Screen size55 inches (diagonal). Other sizes available on request [CONFIRM: state the size range]
Resolution[CONFIRM against panel datasheet]
Transparency[CONFIRM against panel datasheet]
Brightness[CONFIRM against panel datasheet]
Viewing angle178° horizontal / vertical
Response time≤ 1 ms
OrientationPortrait (standard for this cabinet format)
Structural dimensions1000 × 800 × 2000 mm (W × D × H)
Content formatMP4 (H.264 / H.265), pure black background, 15–60 second loop
InteractionTouch interface, motion and proximity auto-trigger, optional gesture control (Kinect / LiDAR)
Control systemTablet-based content and playlist control
Processing unitHigh-performance PC
Power supply220–240V AC, standard socket
Data connectivityLAN, Wi-Fi
PortsHDMI, USB, Ethernet
AudioSpeakers with amplifiers
Ambient lightOptimised for indoor lighting below approximately 500 lux
MountingLevel, rigid floor. No vibration.
InstallationIndoor
Setup time60–120 minutes typical
AvailabilityEvent rental and permanent installation

What is a holobox?

A holobox is a compact, enclosed holographic display that makes digital content appear to float in 3D inside the box, with no glasses or headset needed. It uses reflective optics and a high-resolution 4K screen to create a lifelike floating illusion.

Do you need special glasses to see the hologram?

No. The 3D holographic effect is visible to the naked eye from a wide viewing angle, so anyone can walk up and see the floating content without glasses or any device.

Can I place a real product inside the holobox?

Yes. The holobox is designed so digital holograms can be combined with a physical product, which is ideal for retail and product showcases where you want the real item and 3D content together.

Is the holobox interactive?

It can be. Alongside scheduled playback, you can add touch, motion, and proximity triggers, plus gesture control through Kinect or LiDAR, so visitors can interact with the content directly.

How do you control the content?

Through a simple iPad interface. You can select content, manage playlists, and switch scenes in a tap, with no technical training required.

What size is the holobox and what can it show?

This model has a 55-inch 4K display in a 1000 × 800 × 2000 mm unit. It can show product models, animations, virtual presenters, data visualizations, and interactive 3D experiences.

Where is the holobox best used?

It suits retail stores, exhibitions, experience centres, museums, and corporate lobbies, anywhere you want a premium, attention-grabbing way to showcase a product or tell a story indoors.
